Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope

China Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope supplier
Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope supplier Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope supplier Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope supplier

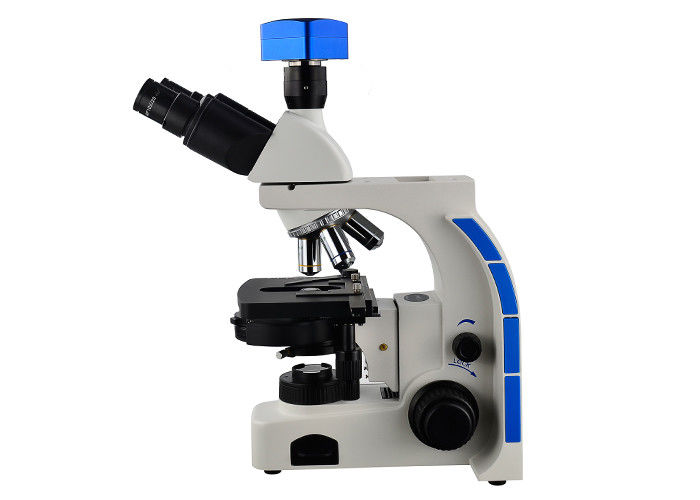

Large Image :  Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: CE/ Rohs/ISO9001/ISO13485
Model Number: UPH203i

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 200-500 USD / unit
Packaging Details: Foam+ Carton 50X50X34 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UPH203i Type: Phase Contrast Microscope
Objective: 4X/10X/40X/100X Eyepiece: WF10X20
Nosepiece: 4 Holes Light Source: 3W LED
Condenser: Abbe Condenser NA1.25 With IrisDiaphragm Viewing Head: 30° Inclined
Application: Hospital Clinic Power Supply: AC100-240V/DC12V
High Light:

phase contrast microscopy

,

highest magnification microscope

Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope40X - 1000X Tinocular Phase Contrast Microscope for Hospital/ Clinic/ Laboratory



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/20 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes


HEADS


• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)



NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)



OBJECTIVES


All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



Infinity achromatic phase contrast objectives 4x/0.13 10x/0.30 20x/0.40 S40x/0.70 S100x/1.25 oil (Optional)
Infinity plan phase contrast objectives 4x/0.10 10x/0.25 S40x/0.65  S100x/1.25 oil (Standard) S60x/ 0.80 (Optional)

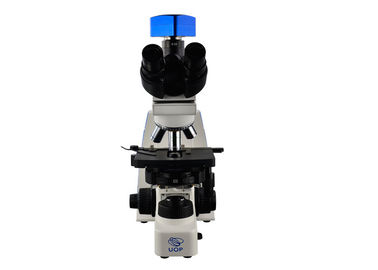

Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope



STAGE



• 156 x 138 mm ceramic stage with integrated 76 x 54 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)



CONDENSER FOR PHASEONTRAST


• An optional height adjustable NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x S60x and S100x oil immersion objectives
and dark field stop position for dark field contrast up to 400x magnification (Optional)





FOCUSING


• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control



ILLUMINATION


• 3 W adjustable LED illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option

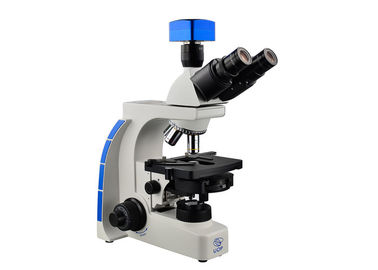

Tinocular Phase Contrast Microscope 40X - 1000X High School Microscope

PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.





CONFIGURATION LIST





Order Code Item UPH202i UPH203i
UB200 Body (Choose the power cord please)
MS2 Binocular, Interpupillary distance 52-75mm /
MS2A Binocular, Interpupillary distance 48-75mm /
MT2B Trinocular, Interpupillary distance 52-75mm (100:0) /
MT2 Trinocular, Interpupillary distance 52-75mm (20:80) /
MT2A Trinocular, Interpupillary distance 48-75mm (20:80) /
MT2C Trinocular, Interpupillary distance 52-75mm (50:50) /
E1020PA High eye-point plan eyepiece WF10X/20 ●● ●●
E1022PC High eye-point plan eyepiece WF10X/22 ○○ ○○
E1613PB Plan eyepiece WF16X/13 ○○ ○○
E1020GA High eye-point plan eyepiece WF10X/20 (Pointer)
E1022GC High eye-point plan eyepiece WF10X/22 (Pointer)
E1020RA Reticule Eyepiece, Cross WF10X/20
CT2 Centering Eyepiece
WB-X4C Infinity Achromatic Objective 4X N.A.0.13
WB-XPHp10C Infinity Ach. Phase-Contrast Objectives (Positive) 10X
WB-XPHp40C Infinity Ach. Phase-Contrast Objectives (Positive) 40X (S)
WB-XPHp100C Infinity Ach. Phase-Contrast Objectives (Positive) 100X (S) oil
WB-XPHn10C Infinity Ach. Phase-Contrast Objectives (Negative) 10X
WB-XPHn40C Infinity Ach. Phase-Contrast Objectives (Negative) 40X (S)
WB-XPHn100C Infinity Ach. Phase-Contrast Objectives (Negative) 100X (S) oil
WB-P4C Infinity Plan Achromatic Objectives 4X
WB-PPHp10C Infinity Plan Phase-Contrast Objectives (Positive) 10X
WB-PPHp20C Infinity Plan Phase-Contrast Objectives (Positive) 20X
WB-PPHp40C Infinity Plan Phase-Contrast Objectives (Positive) 40X (S)
WB-PPHp60C Infinity Plan Phase-Contrast Objectives (Positive) 60X (S)
WB-PPHp100C Infinity Plan Phase-Contrast Objectives (Positive) 100X (S) oil
WB-PPHn10C Infinity Plan Phase-Contrast Objectives (Negative) 10X
WB-PPHn20C Infinity Plan Phase-Contrast Objectives (Negative) 20X
WB-PPHn40C Infinity Plan Phase-Contrast Objectives (Negative) 40X (S)
WB-PPHn60C Infinity Plan Phase-Contrast Objectives (Negative) 60X (S)
WB-PPHn100C Infinity Plan Phase-Contrast Objectives (Negative) 100X (S) oil
ZT2 Mechanical Stage,156X138mm, movement range 76X54mm
ZT2B Rackless Stage, right handed, 185X177mm, movement range 75X50mm
ZQ480 Quadruple Nosepiece, inward facing
ZQ580 Quintuple Nosepiece, inward facing
JG2C Abbe Condenser
JG40B Plan Dis Phase-contrast Condenser
JG41A Plan Dis Phase-contrast Condenser (with 10X /40X darkfield function)
PCB-XPH10B Phase-Contrast Slide (For Ach. Phase Contrast Objectives 10X)
PCB-XPH40B Phase-Contrast Slide (For Ach. Phase Contrast Objectives 40X)
PCB-XPH100B Phase-Contrast Slide (For Ach. Phase Contrast Objectives 100X)
PCB-PPH10C Phase-Contrast Slide (For Plan Objectives) 10X
PCB-PPH20C Phase-Contrast Slide (For Plan Objectives) 20X
PCB-PPH40C Phase-Contrast Slide (For Plan Objectives) 40X/60X/100X
KL2B Kohler Illuminator (No field diaphragm)
KL3A Kohler Illuminator (with field diaphragm)
DQ2 for 6V 20W Halogen Lamps
DQ2A for 6V 30W Halogen Lamps
DQLC2C 3W LED Electric Device (with Rechargeable Batteries)
DQL2C 3W LED Electric Device
SX2A 0.5X C-Mount
SX3 1X C-Mount
SX2 0.65X C-Mount
JK-Nikon Adapter for Nikon DSLR
JK-Cannon Adapter for Cannon DSLR
LA5-0011 Blue Filter (φ38) (LED Lamp without Filter)
LU5-0011 Green Filter (φ38)
LH5-0011 Yellow Filter (φ38)
LB5-0011 Ground Glass (φ38)
BZ-0022A 6V 20W Osram Lamp
BZ-0022 6V 20W Halogen Lamp Made in China
BZ-0023 250V/3.15A Φ5X20 fuse ●●● ●●●
BZ-0022B 6V 30W Halogen Lamp
BZ-0022C 6V 30W Osram Halogen Lamp
DQL2B-2000 3W LED Lamps
BZ-0027 Immersion Oil
WJZ-UB100I/200I Dust Cover
BZ2-0018 φ2mm Allen screw driver
BZ-0021 Power Cord
● menas: stadard configuration ○ means optional configuration
