100X Binoculars Laboratory Biological Microscope For Primary School

China 100X Binoculars Laboratory Biological Microscope For Primary School supplier
100X Binoculars Laboratory Biological Microscope For Primary School supplier 100X Binoculars Laboratory Biological Microscope For Primary School supplier 100X Binoculars Laboratory Biological Microscope For Primary School supplier 100X Binoculars Laboratory Biological Microscope For Primary School supplier

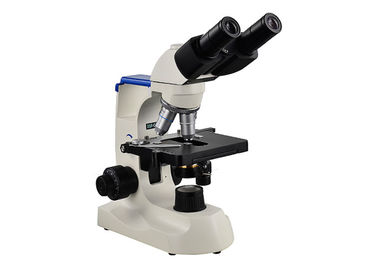

Large Image :  100X Binoculars Laboratory Biological Microscope For Primary School

Product Details:

Place of Origin: China
Brand Name: COIC
Certification: ISO9001/ISO13485
Model Number: C302

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 120-180 USD / unit
Packaging Details: Foam+ Carton 33X24X44 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: C302 Type: Biological Microscope
Objective: 4X/10X/40X/100X Eyepiece: WF10X18
Nosepiece: 4 Holes Light Source: 3W LED
Condenser: Abbe Condenser NA1.25 With Iris Diaphragm Viewing Head: 30° Inclined
Application: Hospital Education Laboratory Power Supply: AC100-240V/DC12V
Color: White & Black& Red
High Light:

binocular light microscope

,

laboratory equipment microscope

100X Binoculars Laboratory Biological Microscope For Primary School

New Design Binocular LED Achromatic Biological Microscope for Primary School



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended WF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes


HEADS


•Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).



NOSEPIECE


• Revolving and reversed nosepiece for 4 objectives



OBJECTIVES


 All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



•Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil

•Semi Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)



100X Binoculars Laboratory Biological Microscope For Primary School



STAGE



• 140 x 130 mm ceramic stage with integrated 78x 30 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective



CONDENSER FOR BRIGHT FIELD


• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield



100X Binoculars Laboratory Biological Microscope For Primary School

FOCUSING


• Coaxial coarse and fine adjustments, 200 graduations, 2 μm per graduation, 100 μm per rotation
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.



ILLUMINATION


• 3W LED adjustable illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.





PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.





CONFIGURATION LIST





Order Code Item C302
EP10g 10×eyepiece WF10×18 ●●
EP16b 16×Plan Eyepiece ○○
EPg10a 10×plan eyepicec WF10×/18 f=25 ○○
EPg16a 16×eyepiece (pointer) WF16×/10 f=15.6
B-OA4d 4×achromatic objective NA=0.10 WD=35.8
B-OA10e 10×achromatic objective NA=0.25 WD=6.64
B-OA40e 40×achromatic objective (s)NA=0.65 WD=0.62
B-OAo100d 100×achromatic objective (s)NA=1.25 WD=0.35
B-OS4d 4×semi achromatic objective NA=0.10 WD=35.8
B-OS10e 10×semi achromatic objective NA=0.25 WD=2.66
B-OS40e 40×semi achromatic objective (s)NA=0.65 WD=0.82
B-OSo100d 100×semi achromatic objective (oil) (s)NA=1.25 WD=0.69
TBR17 Binocular
C27a Condenser
160X.2B Coaxial Coarse and Fine Focus Mechanism
A14b stage size:140×130 move range: 78×30
B26c Elctric Parts
B32b LED parts 3W LED
B32c LED parts 3W LED (with battery)
● menas: stadard configuration ○ means optional configuration

100X Binoculars Laboratory Biological Microscope For Primary School
