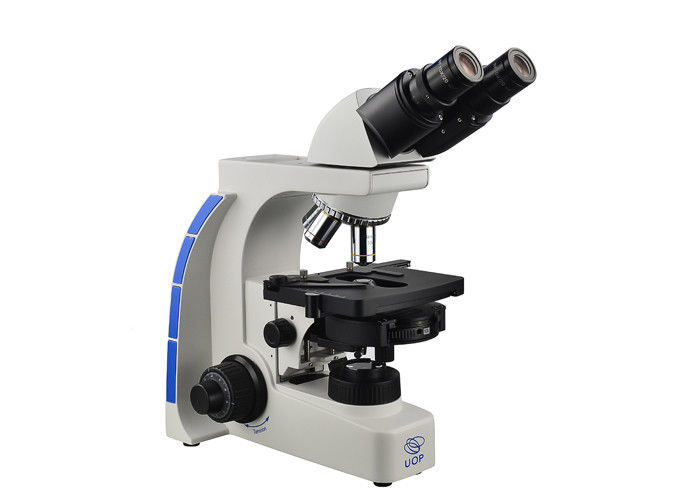

UOP Phase Contrast Microscope Lab 4x 10x 40x Microscope WF10X/20mm Eyepiece

UOP Phase Contrast Microscope Lab 4x 10x 40x Microscope WF10X/20mm Eyepiece

40X - 1000X Tinocular Phase Contrast Microscope for Hospital/ Clinic/ Laboratory

TECHNICALSPECIFICATIONS

1. Type: Phase Contrast Microscope
2. Drawtube: Trinocular
3. Magnification: 40X-1000X
4. Viewing Head: Binocular Head Inclined
5. Other Name: Laboratory Microscope
6. Objective: 4x 10x 40x Microscope
7. Eyepiece: WF10X/20mm
8. Application: Microscopes
9. Material: All-mental Body

EYEPECE(S)

• Extended EWF 10x/20 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes

HEADS

• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)

NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)

OBJECTIVES

All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Infinity achromatic phase contrast objectives 4x/0.13 10x/0.30 20x/0.40 S40x/0.70 S100x/1.25 oil (Optional)
Infinity plan phase contrast objectives 4x/0.10 10x/0.25 S40x/0.65  S100x/1.25 oil (Standard) S60x/ 0.80 (Optional)

STAGE

• 156 x 138 mm ceramic stage with integrated 76 x 54 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)

CONDENSER FOR PHASEONTRAST

• An optional height adjustable NA. 1.25 phase contrast disc condenser with plan phase 10/20/S40x S60x and S100x oil immersion objectives
and dark field stop position for dark field contrast up to 400x magnification (Optional)

FOCUSING

• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION

• 3 W adjustable LED illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the NeoLED is the low energy consumption, no heating and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option

PACKAGING

• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.
