| Model: | UOP0130CC | Type: | CMOS Camera |
|---|---|---|---|
| Colour: | Black | USB: | 2.0 |
| Application: | For Infinity Optical Microscope | Pixel: | 1.3 Million |
| High Light: | cmos microscope camera,usb microscope camera |
||

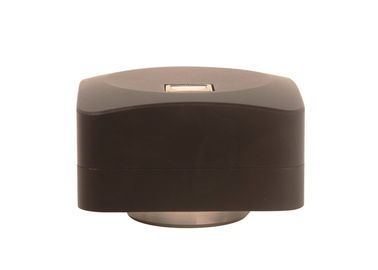

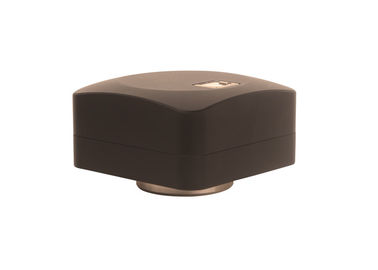

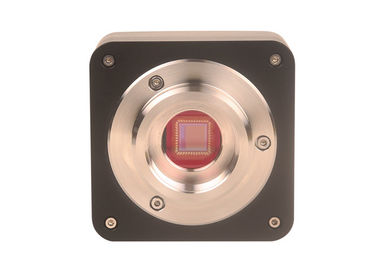

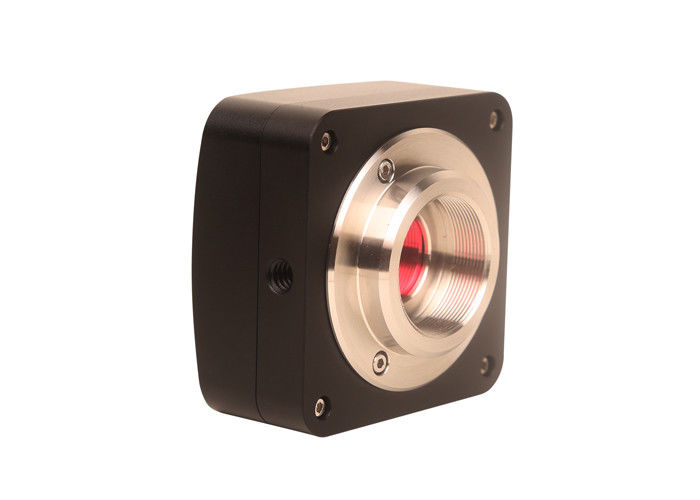

Standard C-Mount camera with Aptina CMOS sensor;
With hardware resolution among 0.35M to 14M;
Integrated zinc aluminum alloy housing;

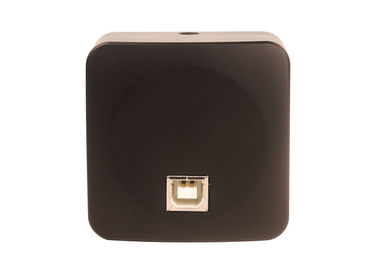

USB2.0 interface ensuring high speed data transmission;
Ultra-Fine color engine with perfect color reproduction capability;
With advanced video & image processing application;
Providing Windows/Linux/OSX multiple platform SDK;
Native C/C++, C#, DirectShow, Twain Control API;
UCMOS: UCMOS camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.
UCMOS camera hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.
UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;
The UCMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.
|
Order Code |
Sensor & Size(mm)
|
Pixel(μm) |
G Sensitivity |
FPS/Resolution |
Binning |
Exposure |
|
Dynamic Range |
||||||
|
SN Ratio |
||||||
|
UOP0130CC |
1.3M/MT9M111(C) |
3.6x3.6 |
1.0V/lux-sec |
15@1280x1024 |
1x1,2x2,4x4 |
0.14ms~2000ms |
|
1/3"(4.60x3.70) |
71dB |
26@640x512 |
||||
|
44dB |
50@320x256 |
