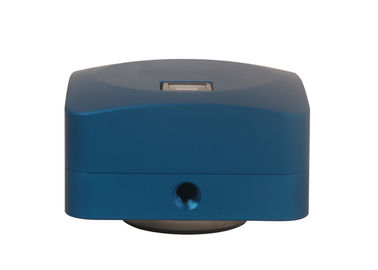

UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel

China UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel supplier
UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel supplier UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel supplier UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel supplier

Large Image :  UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel

Product Details:

Place of Origin: China
Brand Name: UOP
Model Number: UOP0500CC

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 110-120 USD / pc
Packaging Details: Foam+ Carton 15X10X8 cm one unit for a carton
Delivery Time: 1-10 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UOP0500CC Type: CMOS Camera
Colour: Black USB: 2.0
Application: For Infinity Optical Microscope Pixel: 5.0 Million
High Light:

cmos microscope camera

,

usb microscope camera

UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel

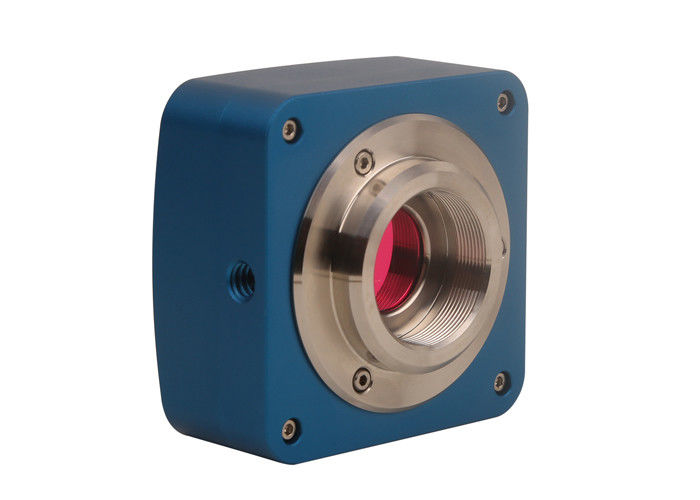

USB2.0 CMOS Series Camera 5.0 Million Pixel C-mount for Microscope





Standard C-Mount camera with Aptina CMOS sensor;



With hardware 5M resolution;

UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel




Integrated zinc aluminum alloy housing;


USB2.0 interface ensuring high speed data transmission;






Ultra-Fine color engine with perfect color reproduction capability;


With advanced video & image processing application;






Providing Windows/Linux/OSX multiple platform SDK;


Native C/C++, C#, DirectShow, Twain Control API;





UCMOS: UCMOS camera is an ultra-high performance CMOS camera and it adopts ultra-high performance CMOS sensor as the image-picking device. USB2.0 is used as the data transfer interface.



UCMOS camera hardware resolutions range from 0.35M to 14M and comes with the Integrated zinc aluminum alloy compact housing.



UCMOS comes with advanced video & image processing application ToupView; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;



The UCMOS can be widely used in brightfield light environment and microscope image capture and analysis with moderate frame rate.

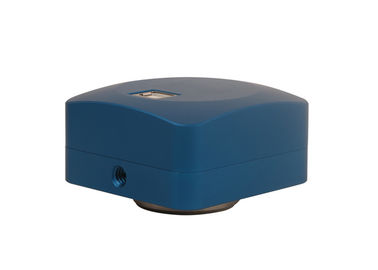

 UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel


Order Code



Sensor & Size(mm)



Pixel(μm)

G Sensitivity

FPS/Resolution

Binning

Exposure

Dynamic Range

SN Ratio

UOP0500CC

5.1M/MT9P006(C)

2.2x2.2

0.53 V/lux-sec

5@2592x1944

1x1,2x2,4x4

0.294ms~2000ms

1/2.5"(5.70x4.28)

66.5dB

18@1280x960

40.5dB

60@640x480










UOP Microscope Accessories USB 2.0 CMOS Camera 5.0 Million Pixel
