11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System

China 11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System supplier
11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System supplier 11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System supplier 11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System supplier 11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System supplier

Large Image :  11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System

Product Details:

Place of Origin: China
Brand Name: UOP
Model Number: XSP-16.0

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 309-429 USD / pc
Packaging Details: Foam+ Carton 25X20X10 cm one unit for a carton
Delivery Time: 1-10 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: XSP-16.0 Type: LCD Screen
Colour: Black USB: 2.0
Application: For Optical Microscope Pixel: 16 Million
High Light:

usb microscope camera

,

ccd camera microscope

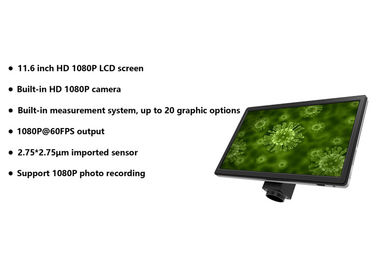

High Quality 11.6 Inch Full HD 16 Million Pixel LCD Screen with Win10 System for Microscope

● 11.6 inch HD 1080P LCD screen

● Built-in HD 1080P camera

● Built-in measurement system, up to 20 graphic options

● 1080P@60FPS output

● 2.75x2.75um imported sensor

● Support 1080P photo recording



11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System

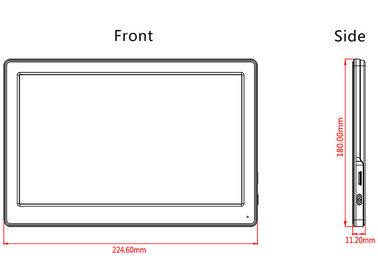

Size:





11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System

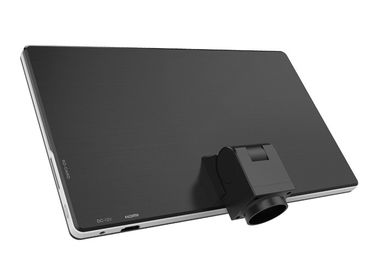

Apperance with microscope:

11.6 Inch Full HD 16 Million Pixel Microscope LCD Screen with Win10 System

Specification:



Specification Model XSP-16.0
Series Integrated display camera
Sensor size 1/2.3"
Effective pixel 16 million pixels
Resolution 1920*1080@30FPS
Screen Resolution 2048*1536 Retinal Screen
Output USB2.0, HDMI, TF card, WIFI
Pixel size 1.335*1.335μm
Power DC-12V/2A
Features UI Digital design, mouse operation, humanized setting
Mark function Point coordinates, Reticle, Coordinates, Text annotation
Length measurement Straight length, broken line length, curve line length, distance between parallel lines,point-line distance
Center distance of circles Radius fixed circle, two point circle, three point fixed circle
Geometry measurement Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles
Geometry area Polygon,Square
Image capture Support 16 million static image capture
Videorecord Supports 1080P video
Measurement tool S-EYE
Package Size 280.00*53.08*253.00mm
Weight 0.8kg

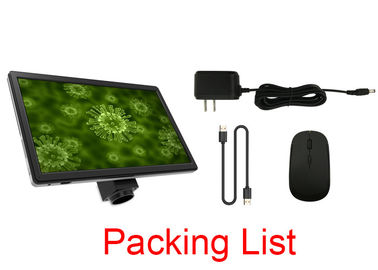

Accessory DC-12V Power adapter
