Product Details:
Payment & Shipping Terms:
|

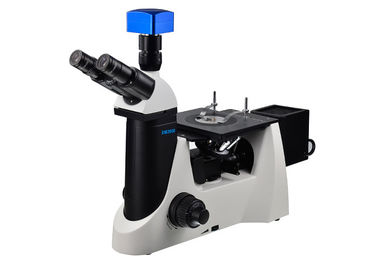

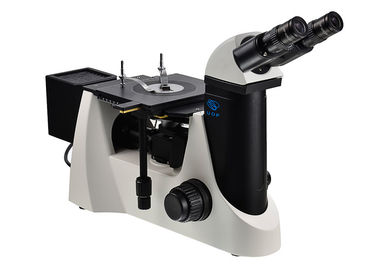

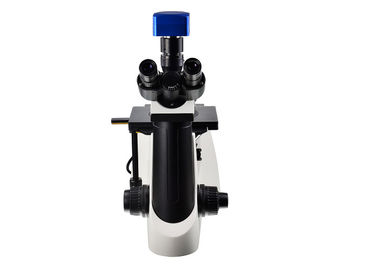

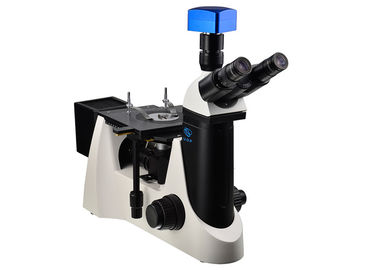

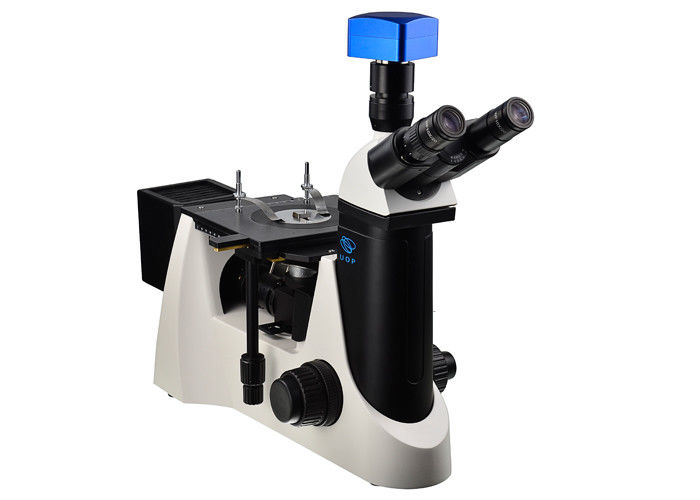

| Model: | DM2000X | Type: | Trinocular Inverted Microscope |
|---|---|---|---|
| Objective: | 10X/20X/50X/80X Objective | Eyepiece: | WF10X20 |
| Nosepiece: | 5 Holes | Light Source: | 12V 50W |
| Condenser: | NA 0.30 | Viewing Head: | 30° Inclined |
| Application: | Hospital Education Laboratory | Stage: | Attachable Mechanical Stage |
| Power Supply: | AC100-240V/DC12V | Color: | White And Black |
| High Light: | inverted phase microscope,inverted phase contrast light microscope |
||
TECHNICALSPECIFICATIONS
EYEPECE(S)
• Extended EWF 10x/20 mm eyepieces, Ø 23.2 mm tubes.(Ø 30.0 optional)
• Eyepieces can be secured to the tubes
HEADS
• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (optional)
NOSEPIECE
• Revolving and reversed nosepiece for 5 objectives
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Infinity plan Metallurgical LWD objectives 5x/ 0.13 (optional) / 10x/0.25, 20x/0.40, S50x/0.70, S80x/0.80, S100x/0.90(dry) (optional)
STAGE
•Mechanical stage 180 x 155 mm ceramic stage with integrated 80 x 50 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective
FOCUSING
• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control
ILLUMINATION
• 12V 50W adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
• Other benefits of the DM2000X is the low energy consumption and a long operating lifetime
PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.
CONFIGURATION LIST
| Order Code | Item | Model |
| DM2000X | ||
| DM2000 | UCIS Infinity Independent Achromatic Optical System, Onepiece Structure, Stable and Reliable | ● |
| MS2D | Binocular Interpupillary Distance 48-75mm Diopter adjustment (20mm field) | ○ |
| MT2D | Trinocular, Interpupillary distance 48-75mm Diopter adjustment (20mm field) | ● |
| MS2 | Binocular, Interpupillary distance 52-75mm Diopter adjustment (22mm field) | ○ |
| MT2 | Trinocular, Interpupillary Distance52-75mm Diopter adjustment (22mm field) | ○ |
| MT2B | Trinocular, Interpupillary Distance52-75mm Diopter adjustment (22mm field) | ○ |
| E1020PB | High Eye-point Plan Eyepiece WF10X/20mm | ●● |
| E1018RA | High Eye-point Plan Reticule Eyepiece 10X/18mm Diopter adjustment | ● |
| E1020PA | High Eye-point Plan Eyepiece WF10X/20mm (MS2/MT2) | ○○ |
| E1022PC | High Eye-point Plan Eyepiece WF10X/22mm (MS2/MT2) | ○○ |
| E1020RA | High Eye-point Plan Reticule Eyepiece WF10X/20mm (MS2/MT2) | ○ |
| WM-P5B | Infinity Plan Achromatic Objective 5X | ○ |
| WM-L10A | Infinity L.W.D Plan Achromatic Metallurgical Objective 10X | ● |
| WM-L20A | Infinity L.W.D Plan Achromatic Metallurgical Objective 20X (S) | ● |
| WM-P50A | Infinity L.W.D Plan Achromatic Metallurgical Objective 50X (S) | ● |
| WM-P80B | Infinity L.W.D Plan Achromatic Objective 80X (S) | ● |
| WM-P100(G)-X1 | Infinity L.W.D Plan Achromatic Metallurgical Objective 100X (dry) Economical | ○ |
| WM-P100(G)-X | Infinity L.W.D Plan Achromatic Metallurgical Objective 100X (dry) | ○ |
| ZT5B | Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm | ● |
| ZT5B-1000 | Drop specimen holder(φ110) | ● |
| ZT5-2000 | Specimen Holder | ● |
| ZQ580A | Quintuple Nosepiece | ● |
| DX10B | 100W Halogen Lamp House (for DM2000) | ● |
| JX11A | Metallurgical Reflected Illuminator | ● |
| PQ9 | Polarizer | ● |
| PY9 | Analyzer | ● |
| LA9 | Blue Filter (φ32) | ● |
| LH9 | Yellow Filter (φ32) | ● |
| LU9 | Green Filter (φ32) | ● |
| LB9 | White Filter (φ32) | ○ |
| SX2 | 0.65X C-Mount | ○ |
| SX2A | 0.5X C-Mount | ○ |
| SX3 | 1X C-Mount | ● |
| SX4 | 0.25X C-Mount for 1/3 CCD | ○ |
| JK-Nikon | Adapter for Nikon DSLR | ○ |
| JK-Cannon | Adapter for Cannon DSLR | ○ |
| OMM | Micrometer | ○ |
| BZ-0022G | 12V 100W Osram Halogen Lamp (12V 100W Power House) | ○ |
| BZ-0022E | 12V 50W Osram Halogen Lamp | ● |
| BZ-0023A | 250V/5A Φ5X20 fuse | ●●● |
| DQ5B | 12V 50W Halogen Lamp Power | ● |
| BZ-0023 | 250V/3.15A Φ5X20 fuse | ○○○ |
| WJZ-DSZ2000 | Dust Cover | ● |
| BZ3-0018 | Φ1.5mm Allen screw driver | ● |
| BZ2-0018 | φ2mm Allen screw driver | ● |
| BZ1-0018A | Φ3mm Allen screw driver | ● |
| SGJ1-5000 | Lamp House Cable | ● |
| BZ2-0021 | Power Cord | ● |
| BZ1-0016 | Accessory Box | ● |
