40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination

Good quality Phase Contrast Microscope for sales
Good quality Phase Contrast Microscope for sales
I'm Online Chat Now

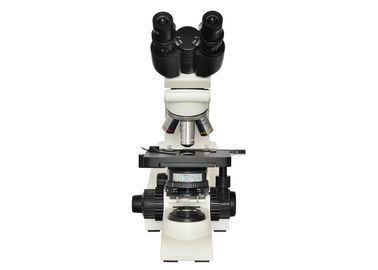

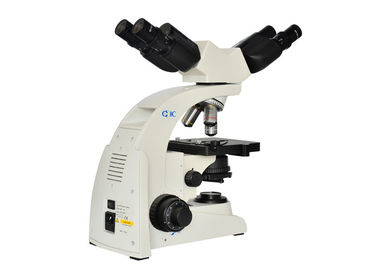

40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination

China 40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination supplier
40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination supplier 40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination supplier 40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination supplier

Large Image :  40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: CE/ Rohs/ISO9001/ISO13485
Model Number: UB104i

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 350-600 USD / unit
Packaging Details: Foam+ Carton 50X50X32 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UB104i Type: Multi Viewing Microscope
Objective: 4X/10X/40X/100X Eyepiece: WF10X18
Nosepiece: 4 Holes Light Source: 3W LED
Condenser: Abbe Condenser NA1.25 With IrisDiaphragm Viewing Head: 30° Inclined
Application: Hospital Education Laboratory Power Supply: AC100-240V/DC12V
Color: White & Blue
High Light:

100x magnification microscope

,

edu science dual viewer microscope

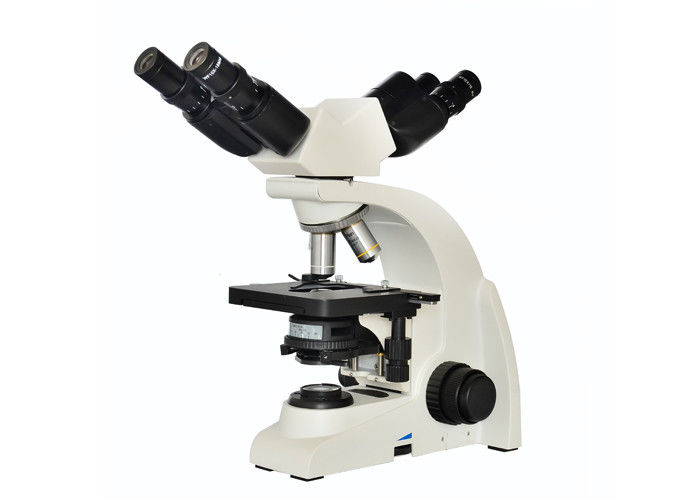

40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination

Multi Viewing Microscope With 3W LED Illumination Magnification from 40-1000



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes


HEADS


• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).




NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)



OBJECTIVES


All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



Infinity achromatic objectives 4x/0.13 10x/0.40 S40x/0.70 S100x/1.25 oil (Standard)

Infinity E-Plan objectives 4x/0.10 10x/0.25  20x/0.40 S40x/0.65 S100x/1.25 oil (Optional)
Infinity plan objectives 4x/0.10 10x/0.25 S40x/0.65  S100x/1.25 oil S60x/ 0.80 (Optional)





STAGE



• 142 x 135 mm ceramic stage with integrated 76 x 52 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective

• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)



CONDENSER FOR BRIGHT FIELD


• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion infinity objectives for economical phase contrast.
• With magnification indication.
• A slider with a simple dark stop for dark field up to 400x magnification is also available





FOCUSING


• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control



ILLUMINATION


• 3 W adjustable LED illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the LED is the low energy consumption, no heating and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option





PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.



40x-1000x UOP Multi Viewing Microscope With 3W LED Illumination

CONFIGURATION LIST





Order Code Item UB104i
UB200 Body (Choose the power cord please)
MS2F Binocular, Interpupillary distance 52-75mm
E1018PD High eye-point plan eyepiece WF10X/18 ●●
E1613PB Plan eyepiece WF16X/13 ○○
E1020GA High eye-point plan eyepiece WF10X/20 (Pointer)
E1020RA Reticule Eyepiece, Cross WF10X/20
WB-X4C Infinity Achromatic Objective 4X N.A.0.13
WB-X10C Infinity Achromatic Objective 10X N.A. 0.30
WB-X40C Infinity Achromatic Objective 40X(S) N.A.0.70
WB-X100C Infinity Achromatic Objective 100X(S)/(Oil) N.A. 1.25
WB-X4C-P Infinity Plan Achromatic Objective (Economical) 4X N.A.0.13
WB-X10C-P Infinity Plan Achromatic Objective (Economical) 10X N.A.0.30
WB-X40C-P Infinity Plan Achromatic Objective (Economical) 40X(S) N.A.0.70
WB-X100C-P Infinity Plan Achromatic Objective (Economical) 100X(S) (oil) N.A.1.25
WB-P2C Infinity Plan Achromatic Objective 2X
WB-P4C Infinity Plan Achromatic Objective 4X
WB-P10C Infinity Plan Achromatic Objective 10X
WB-P02C Infinity Plan Achromatic Objective 20X
WB-P40C Infinity Plan Achromatic Objective 40X (S)
WB-P60C Infinity Plan Achromatic Objective 60X (S)
WB-P100C Infinity Plan Achromatic Objective 100X (S) (Oil)
ZT3 Mechanical Stage, right handed, 142X135mm, movement range 76X52mm
ZT2B Rackless Stage, right handed, 185X177mm, movement range 75X50mm
ZQ470 Quadruple Nosepiece, inward facing
ZQ570 Quintuple Nosepiece, inward facing
JG2C Abbe Condenser
KL2B Kohler Illuminator (No field diaphragm)
KL3A Kohler Illuminator (with field diaphragm)
DQ2 for 6V 20W Halogen Lamps
DQ2A for 6V 30W Halogen Lamps
DQLC2C 3W LED Electric Device (with Rechargeable Batteries)
DQL2C 3W LED Electric Device
LA5-0011 Blue Filter (φ38) (LED Lamp without Filter)
LU5-0011 Green Filter (φ38)
LH5-0011 Yellow Filter (φ38)
LB5-0011 Ground Glass (φ38)
BZ-0022A 6V 20W Osram Lamp
BZ-0022 6V 20W Halogen Lamp Made in China
BZ-0023 250V/3.15A Φ5X20 fuse ●●●
BZ-0022B 6V 30W Halogen Lamp
BZ-0022C 6V 30W Osram Halogen Lamp
DQL2B-2000 3W LED Lamps
BZ-0027 Immersion Oil
WJZ-UB100I/200I Dust Cover
BZ2-0018 φ2mm Allen screw driver
BZ-0021 Power Cord
● menas: stadard configuration ○ means optional configuration
