| Model: | XJP-6A | Type: | Metallurgical Microscope |
|---|---|---|---|
| Objective: | 10X/20X/40X/100X | Eyepiece: | WF10X18 |
| Nosepiece: | 4 Holes | Light Source: | 6V 30W |
| Viewing Head: | 45° Inclined | Application: | Electronics Manufacturers/Forensic Labs/Metal Foundries |
| Stage: | 180*155 80*53mm | Power Supply: | AC100-240V |
| Color: | White And Black | ||
| High Light: | optical tube microscope,inverted metallurgical microscope |
||

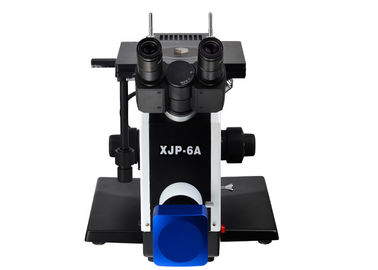

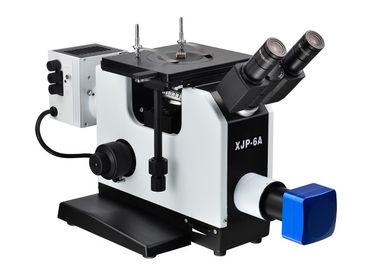

XJP-6A with WF10*18mm eyepiece, 10X 20X 40X and 100X plan objectives, 45° inclined. interpupillary distance 55-75mm.
XJP-6A Configuration List:
| No. | Code | Item | Configuration | Remark |
| 1 | EP10a | 10×Plan Eyepiece | ●● | WF10×/18 f=25 |
| 2 | EP12.5 | 12.5×Plan Eyepiece | ●● | WF12.5×/14 f=20 |
| 3 | EH5 | 5×Huygens Eyepiece | ○○ | 5×/20 f=50 |
| 4 | EPr10b | 10×Plan Reticule Eyepiece | ● | WF10×/18 f=25 |
| 5 | M-OPr10 | 10×Plan Achromatic Objective | ● | NA=0.25 WD=9.02 |
| 6 | M-OPr20 | 20×Plan Achromatic Objective | ● | NA=0.35 WD=1.59 |
| 7 | M-OPr40 | 40×Plan Achromatic Objective | ● | (s)NA=0.65 WD=0.57 |
| 8 | M-OSPor100 | 100×Plan Achromatic Objective (Oil) | ● | (s)NA=1.25 WD=0.69 |
| 9 | M-OPr60 | 60×Plan Achromatic Objective | ○ | (s)NA=0.8 WD=0.32 |
| 10 | M-OPr100a | 100×Plan Objective (dry) | ○ | NA=0.9 WD=0.234 |
| 11 | S09A | Stage | ● | Size:180×155 Movement:75×50 |
| 12 | 9J-6 | Slide (3) | ● | Inner Bore: Φ12 |
| 13 | 9J-9 | Slide (4) | ○ | Inner Bore: Φ40 |
| 14 | TBR03 | Binocular | ● | 45°Incline |
| 15 | PO02 | Polarizer Slide | ● | |
| 16 | PA01 | Analyzer Slide | ● | |
| 17 | CL02 | Specimen Holer | ●● | |
| 19 | 9J.15+Cu43-1 | C-mount | ○ | |
| 22 | SC03 | Specimen Caliper | ○ | |
| 23 | LH01 | Lamp house | ● | |
| 24 | Haloten Lamp 6V/30W | ●● | ||
| 25 | 0.01mm Micrometer | ○ | ||
| 26 | Cargo+ Foam | ● | ||
| 28 | Cu43-1 | Adaptor | ○ |
