V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage

China V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage supplier
V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage supplier V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage supplier

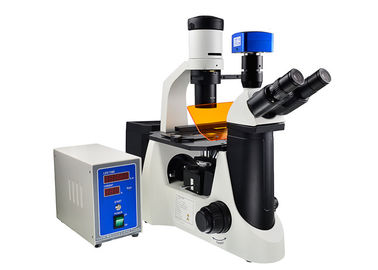

Large Image :  V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: CE/ Rohs/ISO9001/ISO13485
Model Number: DSY2000X

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 1450-3000 USD / unit
Packaging Details: Foam+ Carton 67X54X30cm +50*50*34cm one unit for 2 cartons
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: DSY2000X Type: Fluorescence Microscope
Objective: 10X/20X/40X/20X Phase Contrast Objective Eyepiece: WF10X20
Nosepiece: 5Holes Light Source: 6V 30W
Condenser: NA 0.30 Application: Hospital Education Laboratory
Stage: Attachable Mechanical Stage Power Supply: AC100-240V/DC12V
Color: White And Black Packing Size: 67*54*30mm+50*50*34mm
High Light:

inverted fluorescence microscope

,

inverted phase contrast light microscope

V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage

Hot Sell Inverted Fluorescence Optical Microscope with High Quality V/UV Filter



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/20 mm eyepieces, Ø 23.2 mm tubes.(Ø 30.0 optional)
• Eyepieces can be secured to the tubes


HEADS


• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (optional)



NOSEPIECE
• Revolving and reversed nosepiece for 5 objectives



OBJECTIVES


All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



Infinity plan achromatic LWD objectives 4x/0.13 (optional) / 10x/0.25/ 20x/0.40/  S40x/0.60/ S60x/0.70 (optional)

Infinity plan achromatic LWD phase contrast objectives 4x/ 0.13  (optional) / 10x/0.25 (optional) / 20x/0.40/ S40x/0.60 (optional)



FILTERS



B/G/UV/V fluorescence filters of Chroma.

B/G/UV/V fluorescence filters of China.(Optional)



STAGE



• Attachable mechanical stage



•Mechanical stage 180 x 155 mm ceramic stage with integrated 80 x 50 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective



CONDENSER FOR BRIGHT FIELD


• ELWD condenser NA 0.30, LWD 72mm, it will be 150mm after taking down the condenser.





FOCUSING


• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control



ILLUMINATION


• 6V 30W/ 100W Osram mercury lamp/ 100W mercury lamp(optional) adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the DSZ2000X is the low energy consumption and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option





PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.

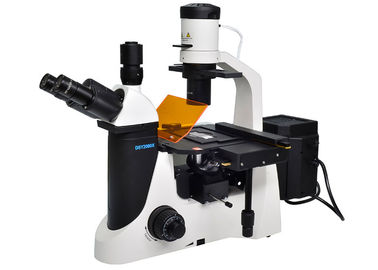

V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage

CONFIGURATION LIST





Order Code Item  Model
DSY2000X
DSZ-JZ5 UCIS Infinity Independent Achromatic Optical System, Onepiece Structure, Stable and Reliable
MS2D Binocular Interpupillary Distance48-75mm Diopter adjustment
MT2D Trinocular, Interpupillary distance 48-75mm Diopter adjustment
MS2 Binocular, Interpupillary distance 52-75mm Diopter adjustment (22mm field)
MT2 Trinocular, Interpupillary Distance52-75mm Diopter adjustment (22mm field)
MT2B Trinocular, Interpupillary Distance52-75mm Diopter adjustment (22mm field)
E1020PB High Eye-point Plan Eyepiece WF10X/20mm ●●
E1018RA High Eye-point Plan Reticule Eyepiece WF10X/18mm
CT1 Centering Telescope
CT2 Centering Telescope (MS2/MT2/MT2B)
E1613PA High Eye-point Plan Eyepiece WF16X/13mm ○○
E1022PC High Eye-point Plan Eyepiece WF10X/22mm (MS2/MT2/MT2B) ○○
E1020RA High Eye-point Plan Reticule Eyepiece WF10X/20mm (MS2/MT2/MT2B)
E1613PB High Eye-point Plan Eyepiece WF16X/13mm (MS2/MT2/MT2B) ○○
WB-L4C Infinity Long Distance Plan Achromatic Objective 4X
WB-L10B Infinity Long Distance Plan Achromatic Objective 10X
WB-L20C Infinity Long Distance Plan Achromatic Objective 20X
WB-L40B Infinity Long Distance Plan Achromatic Objective 40X
WB-L60B Infinity Long Distance Plan Achromatic Objective 60X
WB-LPHp4C Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 4X
WB-LPHp10B Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 10X
WB-LPHp20C Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 20X
WB-LPHp40B Infinity Long Distance Plan Positive Phase-contrast Achromatic Objective 40X
WB-LPHn4C Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 4X
WB-LPHn10B Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 10X
WB-LPHn20C Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 20X
WB-LPHn40B Infinity Long Distance Plan Negative Phase-contrast Achromatic Objective 40X
YG10A Two fiters Structure
YG11 Three fiters Structure
YG10-4000 UV Shield
YGMK2KC-B UV Excitation Filter (made in China)
YGMK2KC-G UV Excitation Filter (made in China)
YGMK2KC-V UV Excitation Filter (made in China)
YGMK2KC-UV UV Excitation Filter (made in China)
YGMK2IC-B B Excitation Filter (chroma)
YGMK2IC-G G Excitation Filter (chroma)
YGMK2IC-V V Excitation Filter ((chroma)
YGMK2IC-UV UV Excitation Filter (chroma)
ZT5+ZTY5 Fixed Stage + Attachable Mechanical Stage
5D-0022 Bracket holder (φ65)
5D-0023 Multi-functional Bracket holder (φ54)
5D-0031 Bracket (φ35)
1D-0022 96-well Plate Holder
ZT5C Mechanical Stage, 180mmx155mm; movement range: 80mmx50mm
ZT5-1000 Drop specimen holder(φ110)
ZT5-2000 Specimen Holder (for mechanical stage)
ZQ580A Quintuple Nosepiece
SGL5 LED Light (UP)
PCB-LPHB Phase-contrast slide (Include10X, 20X/40X Phase contrast Ring)
PCB-LPHC Phase-contrast slide (Include4X,10X, 20X/40X Phase contrast Ring)
SGJ1-3000 6V 30W Halogen Lamp House
SGJ5-0023 Filter Holder
LA1-0011 Blue Filter (φ34)
LU1-0011 Green Filter (φ34)
LH1-0011 Yellow Filter (φ34)
SX2 0.65X C-Mount
SX2A 0.5X C-Mount
SX3 1X C-Mount
SX4 0.25X C-Mount for 1/3 CCD
JK-Nikon Adapter for Nikon DSLR
JK-Cannon Adapter for Cannon DSLR
BZ-0022B 6V 30W Halogen Lamp ○○○
BZ-0022C 6V 30W Osram Halogen Lamp
DQ5 6V 30W Halogen Lamp Power House
BZ-0023 250V/3.15A Φ5X20 fuse ●●●
WJZ-DSZ2000 Dust Cover
BZ2-0018 φ2mm Allen screw driver
BZ-0021 Power Cord
BZ1-0016 Accessory Box



V/UV Filter Upright Microscope And Inverted Microscope Attachable Mechanical Stage
