UM103i Trinocular Optical Metallurgical Microscope Optical Tube Microscope

China UM103i Trinocular Optical Metallurgical Microscope Optical Tube Microscope supplier

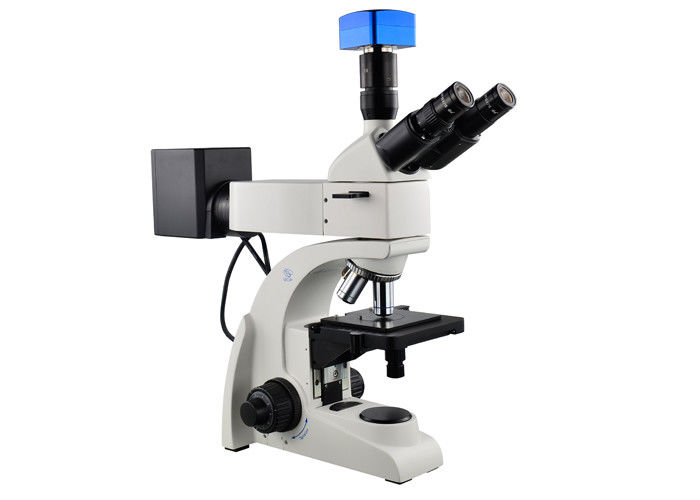

Large Image :  UM103i Trinocular Optical Metallurgical Microscope Optical Tube Microscope

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: CE/ Rohs/ISO9001/ISO13485
Model Number: UM103i

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 450-880/ unit
Packaging Details: Foam+ Carton 50X50X60 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UM103i Type: Metallurgical Microscope
Objective: 5X/10X/20X/50X Eyepiece: WF10X20
Nosepiece: 4 Holes Light Source: 12V 50W
Viewing Head: 30° Inclined Application: Electronics Manufacturers/Forensic Labs/Metal Foundries
Stage: 142*135 76*52mm Power Supply: AC100-240V/DC12V
Color: White And Black
High Light:

upright metallurgical microscope

,

inverted metallurgical microscope

UM103i Trinocular Upright Fluorescence Microscope Optical Tube Microscope

UM103i Cheap Trinocular Reflected Light Metallurgical Microscope with Digital Camera

UM103i metallurgical microscope uses a different lighting method than a conventional microscope and can illuminate solid specimens to identify, inspect, and measure them. They are like other optical microscopes with the exception of the lighting orientation.







TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/18 mm eyepieces, Ø 30 mm tubes.
• Eyepieces can be secured to the tubes



UM103i Trinocular Optical Metallurgical Microscope Optical Tube Microscope
HEADS


• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 30 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)



NOSEPIECE


• Revolving and reversed nosepiece for 4 objectives



OBJECTIVES


•All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



•Infinity professional LWD objectives 5x/0.13 10x/0.25 20x/0.40 S50x/0.70 S100x/1.25 (dry, optional)



UM103i Trinocular Optical Metallurgical Microscope Optical Tube Microscope



STAGE



• 145 x 132 mm ceramic stage with integrated 76 x 52 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective





FOCUSING


• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 60mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control



ILLUMINATION


• 3 W LED or 6V 20Willumination for transmitted light, 12V 50W for reflected light with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
•Other benefits of the LED is the low energy consumption, no heating and a long operating lifetime



PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.





CONFIGURATION LIST







Order Code Item Model
UM102i UM103i
UMT-JZ3 Body (Choose the power cord please)
UM-JZ30 Body (Choose the power cord please)
MS3E Binocular, Interpupillary distance 48-75mm (20:80)
MT3E Trinocular, Interpupillary distance 48-75mm (20:80)
E1018PD High eye-point plan eyepiece WF10X/18 ●● ●●
E1018GB High eye-point plan eyepiece WF10X/18 (Pointer)
E1018RA Reticule Eyepiece, Cross WF10X/18
E1613PA Plan eyepiece WF16X/13 ○○ ○○
WM-P5B 5X Metallurgical Infinity L.W.D Plan Objectives
WM-L10A 10X Metallurgical Infinity L.W.D Plan Achromatic Objectives
WM-L20A 20X Metallurgical Infinity L.W.D Plan Achromatic Objectives (S)
WM-P50A 50X Metallurgical Infinity L.W.D Plan Achromatic Objectives (S)
WM-P80B 80X Metallurgical Infinity L.W.D Plan Achromatic Objectives (S)
DX10A 12V100W Halogen Lamp House
JX2 Reflected Light Illuminator(Single Module)
ZQ470 Quadruple Revolving Nosepiece (Inward Facing)
ZQ570 Quintuple Revolving Nosepiece (Inward Facing)
DQ3M 12V 50W Halogen Lamps
SX2 0.65X C-Mount
SX2A 0.5X C-Mount
SX3 1X C-Mount
SX4 0.25X C-Mount
JK-Nikon Adapter for Nikon DSLR
JK-Cannon Adapter for Cannon DSLR
PQ2B Polarizer (Reflected and Transmitted)
PY2 Analyzer
BZ-0022E 12V 50W Osram Halogen Lamp
BZ-0023A 250V/5A Φ5X20 fuse ●●● ●●●
BZ2-0018 φ2mm Allen screw driver
BZ1-0018 Φ2.5mm Allen screw driver
BZ1-0018A Φ3mm Allen screw driver
WJZ-UB100I/200I Dust Cover
BZ-0021 Power Cord
