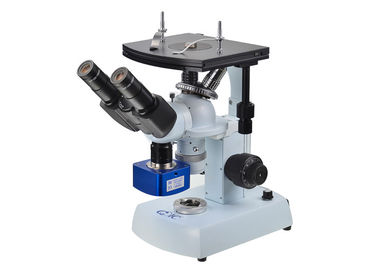

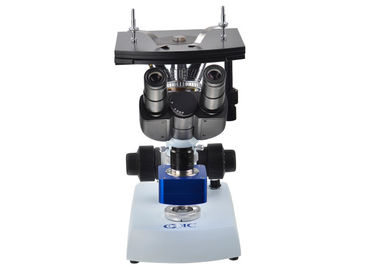

40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A

China 40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A supplier
40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A supplier 40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A supplier

Large Image :  40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A

Product Details:

Place of Origin: China
Brand Name: COIC
Certification: ISO9001/ISO13485
Model Number: XJP-3A

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 349-369/ unit
Packaging Details: Foam+ Carton 30X30X44 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: XJP-3A Type: Metallurgical Microscope
Objective: 4X/10X/40X Eyepiece: WF10X18
Nosepiece: 4 Holes Light Source: 12V 50W
Condenser: Abbe Condenser NA1.25 Viewing Head: 45° Inclined
Application: Electronics Manufacturers/Forensic Labs/Metal Foundries Stage: 180*165 30*30mm
Power Supply: AC100-240V/DC12V Color: White And Black
High Light:

optical tube microscope

,

inverted metallurgical microscope

40X Inverted Fluorescence Microscope High Level COIC Brand XJP-3A

COIC Brand XJP-3A Inverted Metallurgical Optical Microscope with Factory Price



XJP-3A with WF10*18mm eyepiece, 4X 10X and 40X metallurgical objectives, 45° inclined. interpupillary distance 55-75mm.



XJP-3A Configuration List:



No. Code Item XJP-3A Remark
1 EH5 5×Huygens Eyepiece ○○ 5×/20 f=50
2 EP10a 10×Plan Eyepiece ●● WF10×/18 f=25
3 EP12.5 12.5×Plan Eyepiece WF12.5×/14 f=20
4 EPr10b 10×Plan Reticule Eyepiece WF10×/18 f=25
5 M-OPr10 10×Plan Achromatic Objective NA=0.25 WD=9.02
6 M-OPr40 40×Plan Achromatic Objective (s)NA=0.65 WD=0.57
7 M-OSPor100 100×Plan Achromatic Objective (oil) (s)NA=1.25 WD=0.69
8 M-OPr60 60×Plan Achromatic Objective (s)NA=0.8 WD=0.32
9 B-OPr4 4×Plan Achromatic Objective NA=0.10 WD=17.45
10 4J.2 Main Body
11 12X.4 Binocular 45°Incline
12 8306A Stage Size:180×165mm Movement Range:30×30mm
13 4J.1 Electric Parts
14 CL02 Specimen Spring ●●
15 SC03 Specimen Caliper
16 4J.0-1 Slide Φ10
17 4J.0-4 Slide Φ15
18 12X.3-5 Slide Φ20
19 7X.6.4-34 Grey Filter Φ32
20 CU02-1 Blue Filter Φ32
21 7X.6.4-36 Green Filter Φ32
22 7X.6.4-37 Yellow Filter Φ32
23 4J.0-2 Ground Glass Φ32
24   Elctric Parts ●● 6V/20W Halogen Lamp
25   Elctric Parts 3W LED Lamp
26 LS09 Lamps
27   0.01mm Micrometer
