Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope

Good quality Phase Contrast Microscope for sales
Good quality Phase Contrast Microscope for sales
I'm Online Chat Now

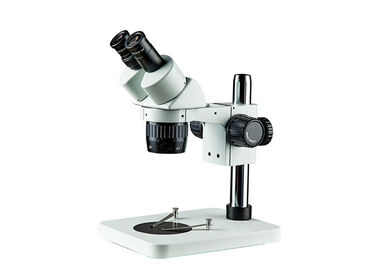

Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope

China Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope supplier

Large Image :  Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: ISO9001/ISO13485
Model Number: UOP6024

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 80-150 USD / unit
Packaging Details: Foam+ Carton 50X40X38 cm 2 units for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UOP6024 Type: Stereo Microscope
Eyepiece: WF10X20 Working Distance: 100mm
Magnification Range: 20×-40× Viewing Head: 45° Inclined
Interpupillary Distance: 54mm-76mm Input Voltage: 200V-240V, 50/60Hz, 0.4A

Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope



UOP6024  Series Stereo Microscope has two magnification levels(10x/20x, 10x/30x, or 20x/40x). It is easy to operate and it is an ideal microscope for student learning and classroom teaching. It is also a perfect device for viewing jewel, PCB, insects and so on.



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/20 mm  ( WF15x/15mm and  WF20x/10mm optional)


HEADS


• Trinocular/ binocular heads with 45° inclined tubes, interpupillary distance from 54 to 76 mm and is equipped with diopter adjustment(s).



OBJECTIVES


• 0.5x Auxiliary Objective, 2x Auxiliary Objective optional



Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope





ILLUMINATION


• Three kinds of illumination are available for your special needs: Transmitted light, Sideling light and LED Circuit light



PACKAGING


• Supplied with power cord, dust cover, a spare fuse
• All packed in good quality foam and carton.





CONFIGURATION LIST



Eyepiece Objective 1X Objective 2X Objective 3X Objective 4X
Working Distance 100mm
Mag. F.O.V Mag. F.O.V Mag. F.O.V Mag. F.O.V
10X/20mm 10X 20.0mm 20X 10.0mm 30X 7.5mm 40X 5.0mm
15X/15mm 12X 15.0mm 30X 7.5mm 45X 5.0mm 60X 3.3mm
20X/10mm 20X 10.0mm 40X 5.0mm 60X 3.3mm 80X 2.5mm
Magnification 20X-40X, 10X-80X with optional eyepieces and objectives
Eyepiece WF10X/20mm high-eyepoint, wide-field; Convenient for observers wearing glasses
Optional Eyepiece WF10X/20mm, WF15X/15mm, WF20X/10mm
Main Body Binocular head, 45° inclined, 360° rotatable, can be locked in any position desired
Interpupillary Distance adjustment:54-76mm; Diopter adjustment:±5 diopters
Objective 2X/4X, 1X/3X, 1X/2X
Focusing Mount A1 focusing mount with vertical working distance 50mm
Stand B1 pole stand, for more options, please refer to “ACCESSORIES-MICROSCOPE STAND”
Illumination Fluorescent lamp, LED ring light, for more option, please refer to “ACCESSORIES-ILLUMINATOR”





Similar models:

Cheap Two Magnification (10x/20x, 10x/30x, or 20x/40x) Stereo Zoom Microscope
