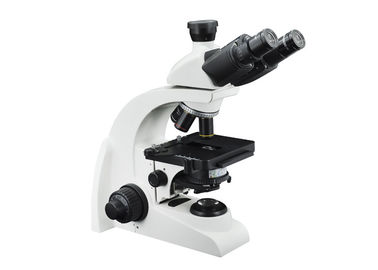

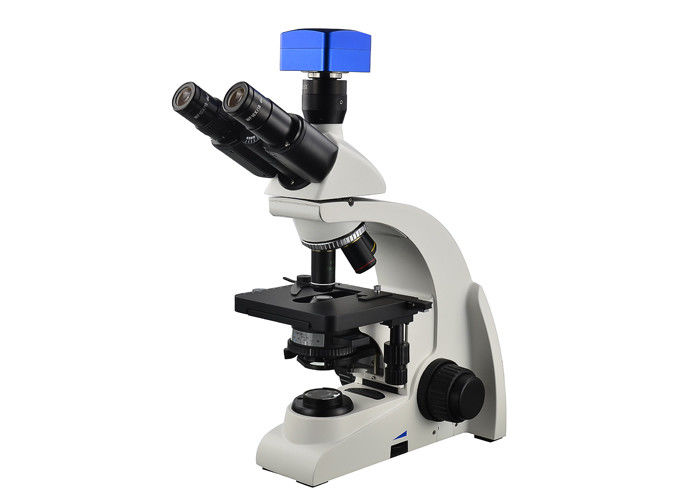

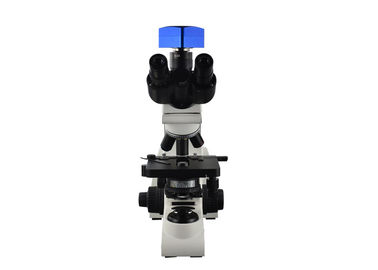

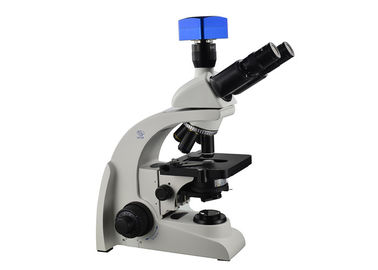

| Model: | UB103i | Type: | Biological Microscope |
|---|---|---|---|
| Objective: | 4X/10X/40X/100X | Eyepiece: | WF10X18 |
| Nosepiece: | 4 Holes | Light Source: | 6V 20W |
| Condenser: | Abbe Condenser NA1.25 With IrisDiaphragm | Viewing Head: | 30° Inclined |
| Application: | Hospital Education Laboratory | Power Supply: | AC100-240V/DC12V |
| Color: | White & Black | ||
| High Light: | clinical laboratory microscopes,laboratory equipment microscope |
||
TECHNICALSPECIFICATIONS
EYEPECE(S)
• Extended EWF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes
HEADS
• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).
• The trinocular head comes with a Ø 23.2 mm photo port.
• An optional ergonomic titling head (0:100 50:50) are also available (Otional)
NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
Infinity achromatic objectives 4x/0.13 10x/0.30 20x/0.40 S40x/0.70 S100x/1.25 oil (Optional)
Infinity E-Plan objectives 4x/0.10 10x/0.25 20x/0.40 S40x/0.65 S100x/1.25 oil (Optional)
Infinity plan objectives 4x/0.10 10x/0.25 S40x/0.65 S100x/1.25 oil ( S60x/ 0.80 Optional)
STAGE
• 142 x 135 mm ceramic stage with integrated 76 x 52 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective
• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)
CONDENSER FOR BRIGHT FIELD
• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield accepts sliders with phase annuli suitable for plan phase 10x/20x or S40x/S100x oil immersion infinity objectives for economical phase contrast.
• With magnification indication.
• A slider with a simple dark stop for dark field up to 400x magnification is also available
FOCUSING
• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control
ILLUMINATION
• 6V 20W adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option
PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.
CONFIGURATION LIST
| Order Code | Item | UB102i | UB103i |
| UB100 | Body (Choose the power cord please) | ● | ● |
| MS3E | Binocular, Interpupillary distance 48-75mm | ● | / |
| MT3E | Trinocular, Interpupillary distance 48-75mm (20:80) | / | ● |
| MT3D | Trinocular, Interpupillary distance 48-75mm (50:50) | / | ○ |
| E1018PD | High eye-point plan eyepiece WF10X/18 | ●● | ●● |
| E1020PB | High eye-point plan eyepiece WF10X/20 | ○○ | ○○ |
| E1613PA | Plan eyepiece WF16X/13 | ○○ | ○○ |
| E1018GD | High eye-point plan eyepiece WF10X/18 (Pointer) | ○ | ○ |
| E1020GB | High eye-point plan eyepiece WF10X/20 (Pointer) | ○ | ○ |
| E1018RA | Reticule Eyepiece, Cross WF10X/18 | ○ | ○ |
| WB-X4C | Infinity Achromatic Objective 4X N.A.0.13 | ● | ● |
| WB-X10C | Infinity Achromatic Objective 10X N.A. 0.30 | ● | ● |
| WB-X40C | Infinity Achromatic Objective 40X(S) N.A.0.70 | ● | ● |
| WB-X100C | Infinity Achromatic Objective 100X(S)/(Oil) N.A. 1.25 | ● | ● |
| WB-X4C-P | Infinity Plan Achromatic Objective (Economical) 4X N.A.0.13 | ○ | ○ |
| WB-X10C-P | Infinity Plan Achromatic Objective (Economical) 10X N.A.0.30 | ○ | ○ |
| WB-X40C-P | Infinity Plan Achromatic Objective (Economical) 40X(S) N.A.0.70 | ○ | ○ |
| WB-X100C-P | Infinity Plan Achromatic Objective (Economical) 100X(S) (oil) N.A.1.25 | ○ | ○ |
| WB-P2C | Infinity Plan Achromatic Objective 2X | ○ | ○ |
| WB-P4C | Infinity Plan Achromatic Objective 4X | ○ | ○ |
| WB-P10C | Infinity Plan Achromatic Objective 10X | ○ | ○ |
| WB-P02C | Infinity Plan Achromatic Objective 20X | ○ | ○ |
| WB-P40C | Infinity Plan Achromatic Objective 40X (S) | ○ | ○ |
| WB-P60C | Infinity Plan Achromatic Objective 60X (S) | ○ | ○ |
| WB-P100C | Infinity Plan Achromatic Objective 100X (S) (Oil) | ○ | ○ |
| ZT3 | Mechanical Stage, right handed, 142X135mm, movement range 76X52mm | ● | ● |
| ZT2 | Mechanical Stage, right handed, 156X138mm, movement range 76X54mm | ○ | ○ |
| ZT2B | Rackless Stage, right handed, 185X177mm, movement range 75X50mm | ○ | ○ |
| ZQ470 | uadruple Nosepiece, inward facing | ● | ● |
| ZQ570 | Quintuple Nosepiece, inward facing | ○ | ○ |
| JG2C | Abbe Condenser | ● | ● |
| KL2B | Kohler Illuminator (No field diaphragm) | ● | ● |
| KL3A | Kohler Illuminator (with field diaphragm) | ○ | ○ |
| DQ2 | for 6V 20W Halogen Lamps | ● | ● |
| DQ2A | for 6V 30W Halogen Lamps | ○ | ○ |
| DQLC2C | 3W LED Electric Device (with Rechargeable Batteries) | ○ | ○ |
| DQL2C | 3W LED Electric Device | ○ | ○ |
| SX2A | 0.5X C-Mount | ○ | ○ |
| SX3 | 1X C-Mount | ○ | ● |
| SX2 | 0.65X C-Mount | ○ | ○ |
| JK-Nikon | Adapter for Nikon DSLR | ○ | ○ |
| JK-Cannon | Adapter for Cannon DSLR | ○ | ○ |
| LA5-0011 | Blue Filter (φ32) (LED Lamp without Filter) | ● | ● |
| LU5-0011 | Green Filter (φ32) | ○ | ○ |
| LH5-0011 | Yellow Filter (φ32) | ○ | ○ |
| LB5-0011 | Ground Glass (φ32) | ○ | ○ |
| BZ-0022A | 6V 20W Osram Lamp | ● | ● |
| BZ-0022 | 6V 20W Halogen Lamp Made in China | ○○○ | ○○○ |
| BZ-0023 | 250V/3.15A Φ5X20 fuse | ●●● | ●●● |
| BZ-0022B | 6V 30W Halogen Lamp | ○ | ○ |
| BZ-0022C | 6V 30W Osram Halogen Lamp | ○ | ○ |
| DQL2B-2000 | 3W LED Lamps | ○ | ○ |
| BZ-0027 | Immersion Oil | ● | ● |
| WJZ-UB100I/200I | Dust Cover | ● | ● |
| BZ2-0018 | φ2mm Allen screw driver | ● | ● |
| BZ-0021 | Power Cord | ● | ● |
| ● menas: stadard configuration ○ means optional configuration | |||
