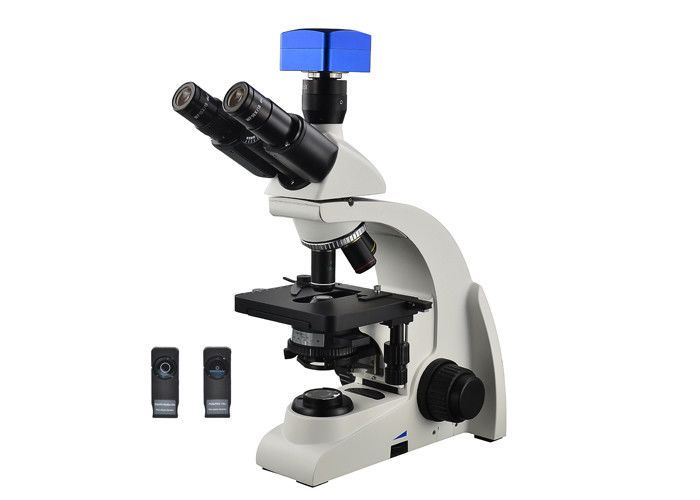

Biological Phase Contrast Light Microscope 40X - 1000X Magnification

Good quality Phase Contrast Microscope for sales
Good quality Phase Contrast Microscope for sales
I'm Online Chat Now

Biological Phase Contrast Light Microscope 40X - 1000X Magnification

China Biological Phase Contrast Light Microscope 40X - 1000X Magnification supplier

Large Image :  Biological Phase Contrast Light Microscope 40X - 1000X Magnification

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: CE/ Rohs/ISO9001/ISO13485
Model Number: UPH103i

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 272-530 USD / unit
Packaging Details: Foam+ Carton 50X50X32 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: UPH103i Type: Phase Contrast Microscope
Objective: 4X/10X/40X/100X Eyepiece: WF10X18
Nosepiece: 4 Holes Light Source: 3W LED
Condenser: Abbe Condenser NA1.25 With IrisDiaphragm Viewing Head: 30° Inclined
Application: Hospital Clinic Power Supply: AC100-240V/DC12V
High Light:

phase contrast microscopy

,

phase contrast light microscope

Biological Phase Contrast Light Microscope 40X - 1000X Magnification

Cheap Trinocular Phase Contrast Microscope 40X - 1000X Magnification


TECHNICALSPECIFICATIONS


EYEPECE(S)
• Extended EWF 10x/18 mm eyepieces
• Eyepieces can be secured to the tubes
HEADS
• Trinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 48 to 75 mm and is equipped with diopter adjustment(s).


NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives (5 objectives is optional)

OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

Infinity achromatic phase contrast objectives 4x/0.13 10x/0.30 S40x/0.70 S100x/1.25 oil (Standard) 20x/0.40 (Optional)
Infinity plan phase contrast objectives 4x/0.10 10x/0.25 S40x/0.65  S100x/1.25 oil S60x/ 0.80 (Optional)
Biological Phase Contrast Light Microscope 40X - 1000X Magnification

STAGE

• 142 x 135 mm ceramic stage with integrated 76 x 52 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective
• 185 x 177 mm rackless stage equipped with double slide holder and integrated 75 x 50 mm rackless mechanical stage. It has no protruding parts, enabling more smooth movements and is safer (Optional)

CONDENSER FOR PHASEONTRAST
• An Abbe condenser NA. 1.25 with phase contrast disc for 10/S40x and S100x oil immersion achromatic phase contras objectives

Biological Phase Contrast Light Microscope 40X - 1000X Magnification
FOCUSING
• Coaxial coarse and fine adjustments, 100 graduations, 1 μm per graduation, 100 μm per rotation, total travel approximately 14 mm.(most to 25mm)
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control

ILLUMINATION
• 3 W adjustable LED illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits is the low energy consumption, no heating and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option


PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.


CONFIGURATION LIST



Order CodeItemUPH102iUPH103i
UB100Body (Choose the power cord please)
MS3EBinocular, Interpupillary distance 48-75mm/
MT3ETrinocular, Interpupillary distance 48-75mm (20:80)/
MT3DTrinocular, Interpupillary distance 48-75mm (50:50)/
E1018PDHigh eye-point plan eyepiece WF10X/18●●●●
E1020PBHigh eye-point plan eyepiece WF10X/20○○○○
E1613PAPlan eyepiece WF16X/13○○○○
E1018GBHigh eye-point plan eyepiece WF10X/18 (Pointer)
E1020GBHigh eye-point plan eyepiece WF10X/20 (Pointer)
E1018RAReticule Eyepiece, Cross WF10X/18
CT1Centering Eyepiece
WB-X4CInfinity Achromatic Objective 4X N.A.0.13
WB-XPHp10CInfinity Ach. Phase-Contrast Objectives (Positive) 10X
WB-XPHp40CInfinity Ach. Phase-Contrast Objectives (Positive) 40X (S)
WB-XPHp100CInfinity Ach. Phase-Contrast Objectives (Positive) 100X (S) oil
WB-XPHn10CInfinity Ach. Phase-Contrast Objectives (Negative) 10X
WB-XPHn40CInfinity Ach. Phase-Contrast Objectives (Negative) 40X (S)
WB-XPHn100CInfinity Ach. Phase-Contrast Objectives (Negative) 100X (S) oil
WB-P4CInfinity Plan Achromatic Objectives 4X
WB-PPHp10CInfinity Plan Phase-Contrast Objectives (Positive) 10X
WB-PPHp20CInfinity Plan Phase-Contrast Objectives (Positive) 20X
WB-PPHp40CInfinity Plan Phase-Contrast Objectives (Positive) 40X (S)
WB-PPHp60CInfinity Plan Phase-Contrast Objectives (Positive) 60X (S)
WB-PPHp100CInfinity Plan Phase-Contrast Objectives (Positive) 100X (S) oil
WB-PPHn10CInfinity Plan Phase-Contrast Objectives (Negative) 10X
WB-PPHn20CInfinity Plan Phase-Contrast Objectives (Negative) 20X
WB-PPHn40CInfinity Plan Phase-Contrast Objectives (Negative) 40X (S)
WB-PPHn60CInfinity Plan Phase-Contrast Objectives (Negative) 60X (S)
WB-PPHn100CInfinity Plan Phase-Contrast Objectives (Negative) 100X (S) oil
ZT3Mechanical Stage,156X138mm, movement range 76X52mm
ZT2BRackless Stage, right handed, 185X177mm, movement range 75X50mm
ZQ470Quadruple Nosepiece, inward facing
ZQ570Quintuple Nosepiece, inward facing
JG2CAbbe Condenser
JG40BPlan Dis Phase-contrast Condenser
JG41APlan Dis Phase-contrast Condenser (with 10X /40X darkfield function)
PCB-XPH10BPhase-Contrast Slide (For Ach. Phase Contrast Objectives 10X)
PCB-XPH40BPhase-Contrast Slide (For Ach. Phase Contrast Objectives 40X)
PCB-XPH100BPhase-Contrast Slide (For Ach. Phase Contrast Objectives 100X)
PCB-PPH10CPhase-Contrast Slide (For Plan Objectives) 10X
PCB-PPH20CPhase-Contrast Slide (For Plan Objectives) 20X
PCB-PPH40CPhase-Contrast Slide (For Plan Objectives) 40X/60X/100X
KL2BKohler Illuminator (No field diaphragm)
KL3AKohler Illuminator (with field diaphragm)
DQ2for 6V 20W Halogen Lamps
DQ2Afor 6V 30W Halogen Lamps
DQLC2C3W LED Electric Device (with Rechargeable Batteries)
DQL2C3W LED Electric Device
SX2A0.5X C-Mount
SX31X C-Mount
SX20.65X C-Mount
JK-NikonAdapter for Nikon DSLR
JK-CannonAdapter for Cannon DSLR
LA5-0011Blue Filter (φ38) (LED Lamp without Filter)
LU5-0011Green Filter (φ38)
LH5-0011Yellow Filter (φ38)
LB5-0011Ground Glass (φ38)
BZ-0022A6V 20W Osram Lamp
BZ-00226V 20W Halogen Lamp Made in China
BZ-0023250V/3.15A Φ5X20 fuse●●●●●●
BZ-0022B6V 30W Halogen Lamp
BZ-0022C6V 30W Osram Halogen Lamp
DQL2B-20003W LED Lamps
BZ-0027Immersion Oil
WJZ-UB100I/200IDust Cover
BZ2-0018φ2mm Allen screw driver
BZ-0021Power Cord
● menas: stadard configuration ○ means optional configuration
