Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective

China Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective supplier

Large Image :  Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective

Product Details:

Place of Origin: China
Brand Name: COIC
Certification: ISO9001/ISO13485
Model Number: XDS-1B

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 750-1000 USD / unit
Packaging Details: Foam+ Carton 67X54X30 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: XDS-1B Type: Biological Microscope
Objective: 10X/25X/40X Objectives And 25X Phase Contrast Objective Eyepiece: WF10X20/ WF16*14/ WF10*18
Nosepiece: 4 Holes Light Source: 6V 20W
Condenser: NA 0.30 Viewing Head: 30° Inclined
Application: Hospital Education Laboratory Power Supply: AC100-240V/DC12V
Color: White And Black
High Light:

inverted fluorescence microscope

,

inverted phase contrast light microscope

Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective

XDS-1B High Quality Inverted Optical Microscope Biological Microscope Trinocular



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/20 mm eyepieces, WF16*14 eyepieces, WF10*18 Reticule eyepiece
• Eyepieces can be secured to the tubes


HEADS


• Binocular Siedentopf type heads are with 45° inclined tubes, interpupillary distance from 55 to 75 mm and is equipped with diopter adjustment(s).
• It comes with a Ø 30 mm photo port.



NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives



OBJECTIVES


All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



Infinity plan achromatic LWD objectives 10x/0.25/ 25x/0.40/ S40x/0.60

Infinity plan achromatic LWD phase contrast objectives 10x/0.25 (optional) / 25x/0.40, S40x/0.60 (optional)

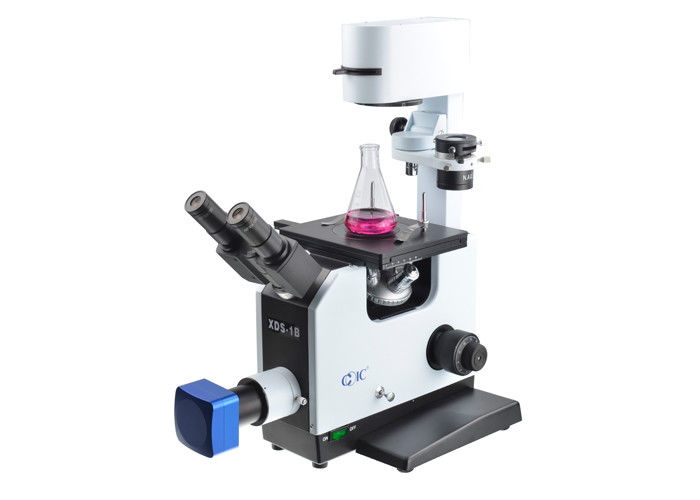

Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective

STAGE



• Attachable mechanical stage



•Mechanical stage 180 x 155 mm ceramic stage with integrated 80 x 55 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective



CONDENSER FOR BRIGHT FIELD


• LWD condeser with phase contrast slide slot.





FOCUSING


• Coaxial coarse and fine adjustments, 2 μm per graduation, 0.2mm per rotation, total travel approximately 11.5mm.
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
• The coarse adjustments are equipped with friction control



ILLUMINATION


• Kohler illumination system, it helps to get more clear images. 6V 20W adjustable halogen illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
Other benefits of the XDS-1B is the low energy consumption and a long operating lifetime
• The illumination on models with IOS plan and plan phase infinity corrected system provides high contrast and a maximum achievable resolving
power of the optics. Also available for other models as an option





PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual.
• All packed in good quality foam and carton.





CONFIGURATION LIST



No. Code Item Configuration Remark
XDS-1B
1 EW10 10×Wide Field Eyepiece ●● WF10×/20 f=24.96
2 EW16 16×Wide Field Eyepiece ●● WF16×/14 f=15.6
3 EPr10b 10×Plan Reticule Eyepiece WF10×/18 f=25
4 EC11 11×Centering Telescope
5 EP10a 10×Eyepiece   WF10×/18 f=25
6 EP16a 16×Eyepiece   WF16×/10 f=15.6
7 B-OLPr10 10×LWD Plan Achromatic Objective NA=0.25 WD=9.36
8 B-OLPr25 25×LWD Plan Achromatic Objective NA=0.40 WD=6.5
9 B-OLPr40 40×LWD Plan Achromatic Objective (s)NA=0.65 WD=4.5
10 B-OLPpr10 10×LWD Plan Positive Phase-contrast Objective NA=0.25 WD=9.36
11 B-OLPpr25 25×LWD Plan Positive Phase-contrast Objective NA=0.40 WD=6.5
12 B-OLPpr40 40×LWD Plan Positive Phase-contrast Objective (s)NA=0.65 WD=4.5
13 B-OLPnr10 10×LWD Plan Negative Phase-contrast Objective NA=0.25 WD=9.36
14 B-OLPnr25 25×LWD Plan Negative Phase-contrast Objective NA=0.40 WD=6.5
15 B-OLPnr40 40×LWD Plan Negative Phase-contrast Objective NA=0.65 WD=4.5
16 B-OLPr4+33XB.5 4× Objective
17   Main Body
18 TBR03 Binocular
19 S09a Stage Size:180×155 Movement Range:75×50
20 8306a Stage   the same with mode of 4J,5J
21 33X-4 Specimen Holder
22 33X-5 Slide Inner Size: 80×32
23 9J-8 Slide(3) Inner Bore: Φ25
24 9J-9 Slide(4) Inner Bore: Φ40
25 RP10 25×Slides
26 RP09 10×Slides
27 RP11 40×Slides
28 33X.6 Overlength Condensers
29 33X.3c Illumination
30 CL02 Specimen Spring ●●
31 9J.15+Cu43-1 C-Mount
32   6V/20W Halogen Lamp ●● G4
33 33X.3B Lamp House
34   0.01mm Micrometer
Other
1 33xb.5 Ground Glass
2 B-0SP4a 4X Objective
3 33X.4-7 Back shroud
4 12X.2.2 Field Stop
5 33X.3B.2 Condeser(with Field Stop)



Biological Trinocular Inverted Optical Microscope 25X Phase Contrast Objective
