Professional Stereo Optical Microscope With 5 Million Pixel Camera

China Professional Stereo Optical Microscope With 5 Million Pixel Camera supplier
Professional Stereo Optical Microscope With 5 Million Pixel Camera supplier Professional Stereo Optical Microscope With 5 Million Pixel Camera supplier

Large Image :  Professional Stereo Optical Microscope With 5 Million Pixel Camera

Product Details:

Place of Origin: China
Brand Name: UOP
Certification: ISO9001/ISO13485
Model Number: ZSA0745T

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 290-350USD / unit
Packaging Details: Foam+ Carton 36X35X42 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: ZSA0745T Type: Stereo Microscope
Eyepiece: WF10X20 Zoom Ratio: 1:6.4
Magnification Range: 0.7×-4.5× Viewing Head: 45° Inclined
Interpupillary Distance: 55mm-75mm Input Voltage: 200V-240V, 50/60Hz, 0.4A
High Light:

trinocular stereo zoom microscope

,

binocular stereoscopic microscope

Professional Stereo Optical Microscope With 5 Million Pixel Camera

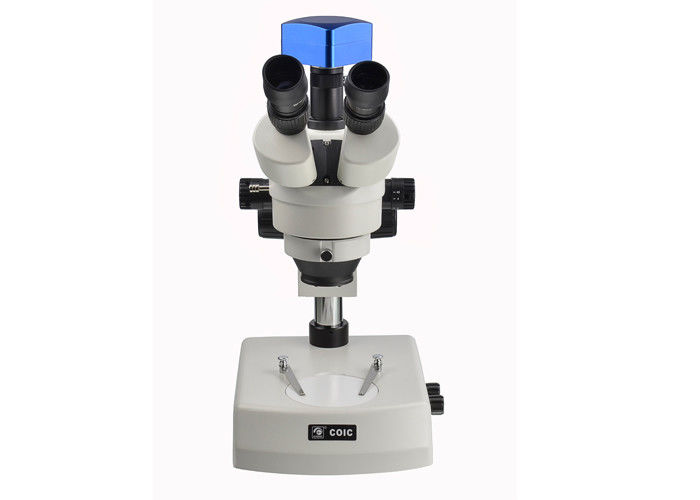

ZSA0745T Trinocular Stereo Optical Microscope with 5 Million Pixel Camera



Characteristic
1) Destaticization: stand, zoom tube, 10×eyepiece and auxiliary objective are all equipped with destaticization. It is very helpful for users to observe the specimen with static( such as semiconductor chip).When use this function, please connect the microscope to the ground through the joggle on the back of the stand.
2) Airproof Function: zoom tube and 10× eyepiece are both equipped with airproof function, and this ensures the instrument work properly when  the humidity around is high.
3) Ergonomics design can make users feel comfortable after long-time operation.
4) High definition, broad wide field of view, long-distance work. Various of attachments can be added on this instrument. It can be widely used in such fields:
a. Can be used for training and education in school and research institute
b. Can be used for routine inspection in medical institution.
c. Can be used for assemblage, testing, measuring and quality control in industry, especially in IT.
5) Kinds of optional attachments ( such as illumination, stand, eyepiece, objectives and etc.)





TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/20 mm


HEADS


• Trinocular heads with 45° inclined tubes, interpupillary distance from 55 to 75 mm and is equipped with diopter adjustment(s).



OBJECTIVES


• 0.5x Auxiliary Objective, 2x Auxiliary Objective optional







ILLUMINATION


• Three kinds of illumination are available for your special needs: Transmitted light, Sideling light and LED Circuit light



PACKAGING


• Supplied with power cord, dust cover, a spare fuse
• All packed in good quality foam and carton.





CONFIGURATION LIST



No. Item 0745B 0745T
1 ZSA0745B/ZSA0745T Zoom Tube
2 Binocular 45° Inclined Tube /
3 Trinocular 45° Inclined Tube /
4 10x Eyepiece WF10x20
5 10X Division Eyepiece
6 15x Eyepiece
7 20x Eyepiece
8 0.5×Auxiliary Objective
9 2×Auxiliary Objective
10 Zoom Tube
11 Zoom Knob
12 Microscope Body
13 Focusing Knob
14 Base
15 Switch
16 Brightless Adjusting Knob
17 LED Circular Illumination
18 Movable Hinge
19 Micrometer
20 Universal stand
21 Large Stand
22 Reflected illumination /
23 0.4x reduce lense + CCD /
24 0.4x reduce lens + intermediate lens + digital camera /
25 Camera adapter + 2.5x photography eyepiece /
26 Intermediate tube + 10x eyepiece + Nikon digital camera /
27 2.0 USB cable /
● menas: stadard configuration ○ means optional configuration
