Product Details:
Payment & Shipping Terms:
|

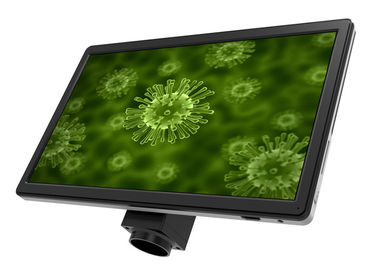

| Model: | XSP-16.0 | Type: | LCD Screen |
|---|---|---|---|
| Colour: | Black | USB: | 2.0 |
| Application: | For Optical Microscope | Pixel: | 16 Million |
| High Light: | usb microscope camera,ccd camera microscope |
||
● Built-in HD 1080P camera
● Built-in measurement system, up to 20 graphic options
● 1080P@60FPS output
● 2.75x2.75um imported sensor
● Support 1080P photo recording
| Specification | Model | XSP-16.0 |
| Series | Integrated display camera | |
| Sensor size | 1/2.3" | |
| Effective pixel | 16 million pixels | |
| Resolution | 1920*1080@30FPS | |
| Screen Resolution | 2048*1536 Retinal Screen | |
| Output | USB2.0, HDMI, TF card, WIFI | |
| Pixel size | 1.335*1.335μm | |
| Power | DC-12V/2A | |
| Features | UI | Digital design, mouse operation, humanized setting |
| Mark function | Point coordinates, Reticle, Coordinates, Text annotation | |
| Length measurement | Straight length, broken line length, curve line length, distance between parallel lines,point-line distance | |
| Center distance of circles | Radius fixed circle, two point circle, three point fixed circle | |
| Geometry measurement | Line length, radius setting circle, two points setting circle, three points setting circle, concentric circles | |
| Geometry area | Polygon,Square | |
| Image capture | Support 16 million static image capture | |
| Videorecord | Supports 1080P video | |
| Measurement tool | S-EYE | |
| Package | Size | 280.00*53.08*253.00mm |
| Weight | 0.8kg | |

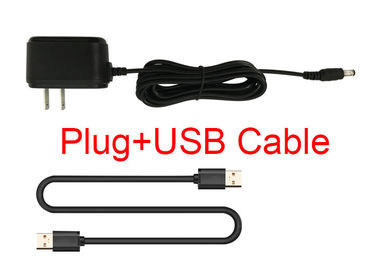

| Accessory | DC-12V Power adapter |
