XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm

China XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm supplier
XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm supplier XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm supplier

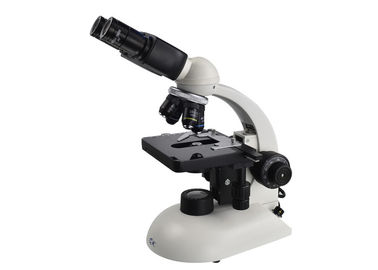

Large Image :  XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm

Product Details:

Place of Origin: China
Brand Name: COIC
Certification: ISO9001/ISO13485
Model Number: XSP-C204

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: 100-150 USD / unit
Packaging Details: Foam+ Carton 33X24X44 cm one unit for a carton
Delivery Time: 1-45 days
Payment Terms: T/T, Western Union
Supply Ability: 1000 units / month
Contact Now
Detailed Product Description
Model: XSP-C204 Type: Biological Microscope
Objective: 4X/10X/40X/100X Eyepiece: WF10X18
Nosepiece: 4 Holes Light Source: 3W LED
Condenser: Abbe Condenser NA1.25 With Iris Diaphragm Viewing Head: 30° Inclined
Application: Hospital Education Laboratory Power Supply: AC100-240V/DC12V
Color: White & Black
High Light:

clinical laboratory microscopes

,

laboratory equipment microscope

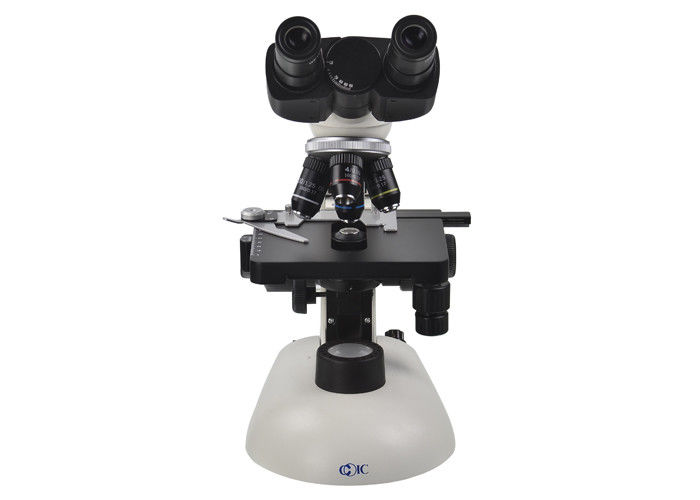

XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm

XSP-C204 Binocular Biological Microscope for Primary School Students



TECHNICALSPECIFICATIONS





EYEPECE(S)


• Extended EWF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes


HEADS


• Binocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).



NOSEPIECE


• Revolving and reversed nosepiece for 4 objectives



OBJECTIVES


 All optics are anti-fungus treated and anti-reflection coated for maximum light throughput



•Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil  (Optional)

•Semi Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)

•Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)



XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm



STAGE



• 140 x 130 mm ceramic stage with integrated 78 x 30 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective



CONDENSER FOR BRIGHT FIELD


• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield



XSP-C204 Student Binocular Microscope Abbe Condenser NA1.25 With Iris Diaphragm

FOCUSING


• Coaxial coarse and fine adjustments, 200 graduations, 2 μm per graduation, 100 μm per rotation
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.



ILLUMINATION


• 3W LED adjustable illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.





PACKAGING


• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.





CONFIGURATION LIST





Order Code Item XSP-C204
ER10 10×eyepiece WF10×/17.2 f=24.77
ERg10 10×eyepiece (pointer) WF10×/17.2 f=24.77
EP10a 10×plan eyepicec WF10×/18 f=25
EPg10a 10×plan eyepicec (pointer) WF10×/18 f=25
EH5 5×eyepiece WF5×/20 f=50
EP16a 16×eyepiece WF16×/10 f=15.6
EPg16a 16×eyepiece (pointer) WF16×/10 f=15.6
B-OA4d 4×achromatic objective NA=0.10 WD=35.8
B-OA10e 10×achromatic objective NA=0.25 WD=6.64
B-OA40e 40×achromatic objective (s)NA=0.65 WD=0.62
B-OAo100d 100×achromatic objective (s)NA=1.25 WD=0.35
B-OSP4a 4×semi achromatic objective NA=0.10 WD=35.8
B-OSP10b 10×semi achromatic objective NA=0.25 WD=2.66
B-OSP40f 40×semi achromatic objective (s)NA=0.65 WD=0.82
B-OSPo100b 100×semi achromatic objective (oil) (s)NA=1.25 WD=0.69
TBR1B Binocular
160X.2B Coaxial Coarse and Fine Focus Mechanism
A14b stage size:140×130 move range: 78×30
160X.6 condenser NA=1.25
160X.4G LED parts 3W LED
160X.5G LED parts 3W LED (with battery)
● menas: stadard configuration ○ means optional configuration
