Product Details:
Payment & Shipping Terms:
|

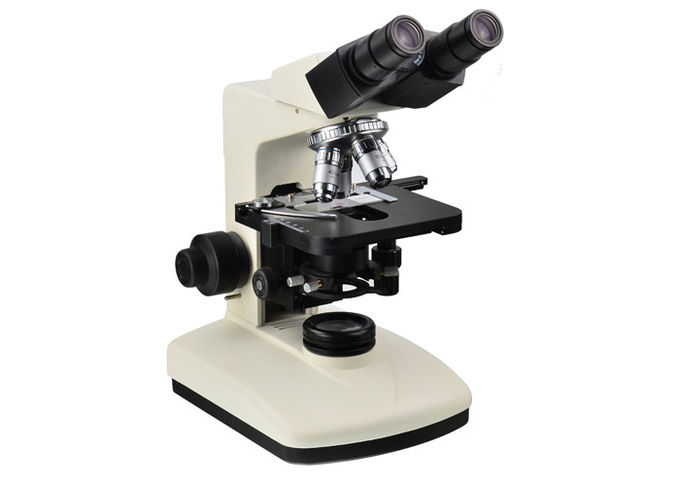

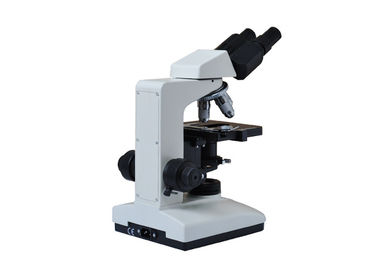

| Model: | BK1201 | Type: | Biological Microscope |
|---|---|---|---|
| Objective: | 4X/10X/40X/100X | Eyepiece: | WF10X18 |
| Nosepiece: | 4 Holes | Light Source: | 3W LED |
| Condenser: | Abbe Condenser NA1.25 With Iris Diaphragm | Viewing Head: | 30° Inclined |
| Application: | Hospital Education Laboratory | Power Supply: | AC100-240V/DC12V |
| Color: | White & Black& Red | ||
| High Light: | clinical laboratory microscopes,laboratory equipment microscope |
||
TECHNICALSPECIFICATIONS
EYEPECE(S)
• Extended WF 10x/18 mm eyepieces, Ø 23.2 mm tubes.
• Eyepieces can be secured to the tubes
HEADS
•Brinocular Siedentopf type heads are with 30° inclined tubes, interpupillary distance from 52 to 75 mm and is equipped with diopter adjustment(s).
NOSEPIECE
• Revolving and reversed nosepiece for 4 objectives
OBJECTIVES
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput
•Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil
•Semi Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)
•Plan Achromatic objectives 4x/0.13 10x/0.25 S40x/0.65 S100x/1.25 oil (Optional)
STAGE
• 150 x 135 mm ceramic stage with integrated 76 x 40 mm mechanical stage protects with a very tough ceramic surface, against marks and scratches.The surface also ensures stray light not to be reflected from the stage into the objective
CONDENSER FOR BRIGHT FIELD
• The standard height adjustable Abbe N.A. 1.25 condenser for brightfield
FOCUSING
• Coaxial coarse and fine adjustments, 200 graduations, 2 μm per graduation, 100 μm per rotation
• Supplied with an adjustable rack stop to prevent damage to sample and objectives.
ILLUMINATION
• 3W LED adjustable illumination with internal 100-240 V power supply
• The innovative design offer larger apertures, allowing the optical system of the microscope to produce images at higher resolutions,
very close to the theoretical diffraction limit of the optics.
PACKAGING
• Supplied with power cord, dust cover, a spare fuse, user manual and 4 ml immersion oil for models with S100x objective.
• All packed in good quality foam and carton.
CONFIGURATION LIST
| Order Code | Item | BS203 |
| EP10a | 10×eyepiece WF10×18 | ● |
| EP16a | 16×Plan Eyepiece | ○ |
| EPg10a | 10×plan eyepicec WF10×/18 f=25 | ○ |
| EPg16a | 16×eyepiece (pointer) WF16×/10 f=15.6 | ○ |
| B-OA4c | 4×achromatic objective NA=0.10 WD=35.8 | ● |
| B-OA10d | 10×achromatic objective NA=0.25 WD=6.64 | ● |
| B-OA40d | 40×achromatic objective (s)NA=0.65 WD=0.62 | ● |
| B-OAo100d | 100×achromatic objective (s)NA=1.25 WD=0.35 | ● |
| B-OSP4a | 4×semi achromatic objective NA=0.10 WD=35.8 | ○ |
| B-OSP10b | 10×semi achromatic objective NA=0.25 WD=2.66 | ○ |
| B-OSP40f | 40×semi achromatic objective (s)NA=0.65 WD=0.82 | ○ |
| B-OSPo100b | 100×semi achromatic objective (oil) (s)NA=1.25 WD=0.69 | ○ |
| TBR06 | Binocular | ● |
| C05 | Condenser | ● |
| 160X.2B | Coaxial Coarse and Fine Focus Mechanism | ● |
| A17b | stage size:150×135 move range: 76×40 | ● |
| B26c | Elctric Parts | ● |
| B26e | LED parts 3W LED | ● |
| B26f | LED parts 3W LED (with battery) | ○ |
| ● menas: stadard configuration ○ means optional configuration | ||
